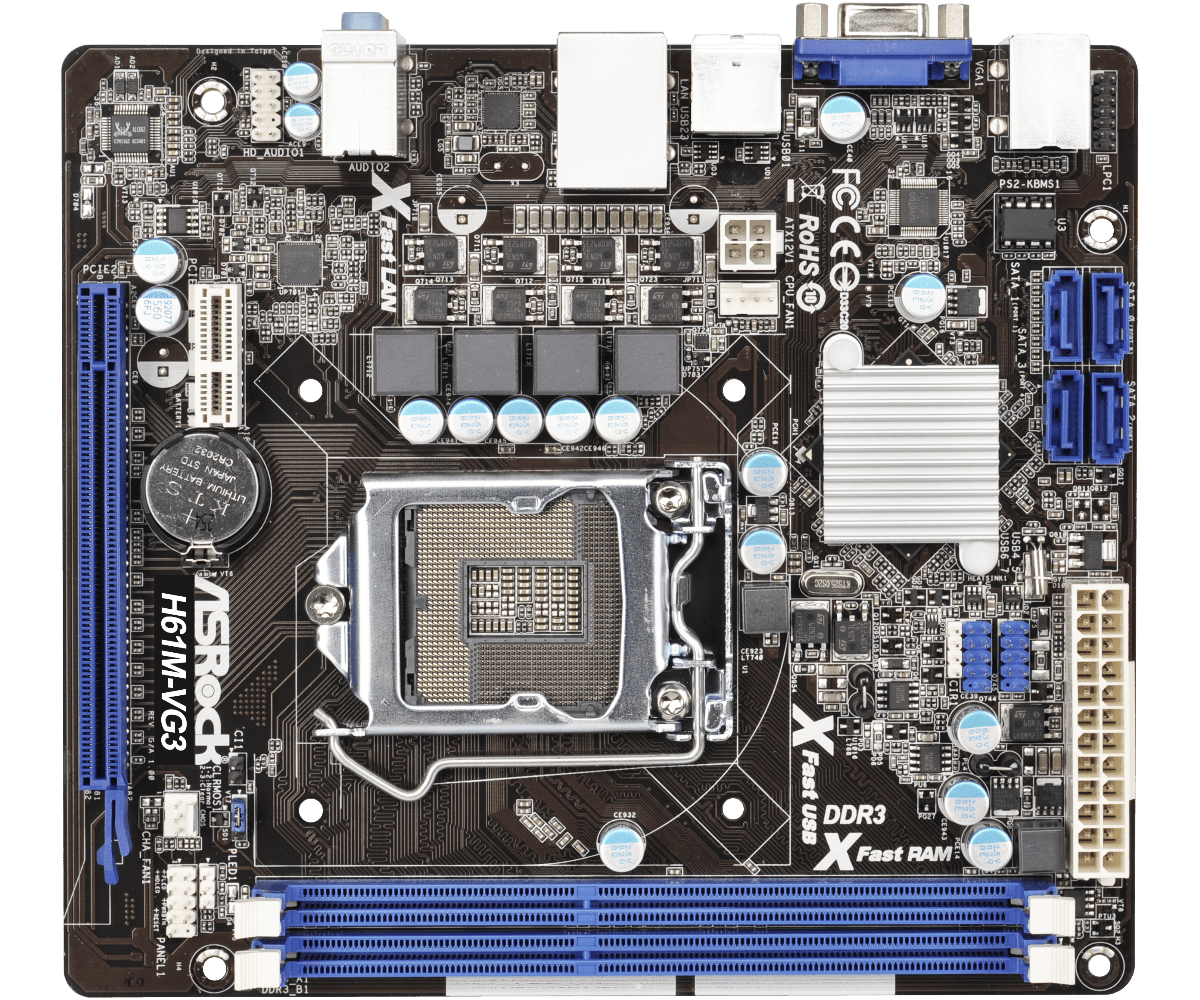

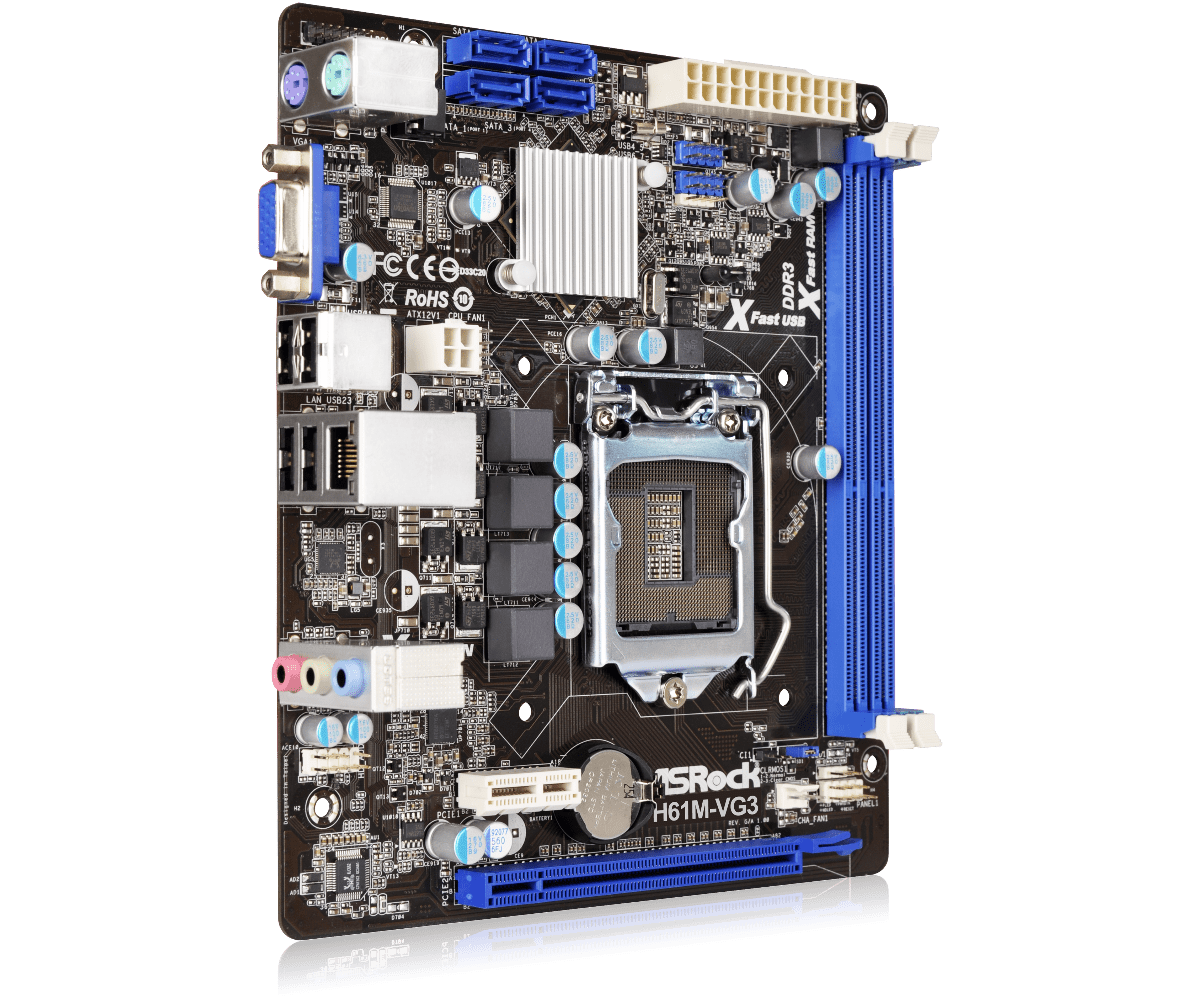

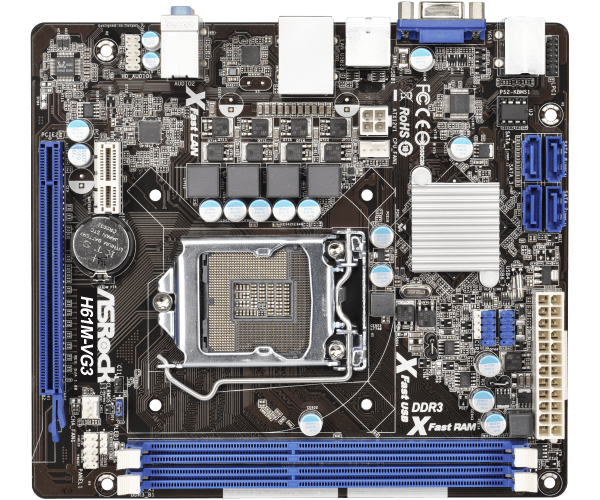

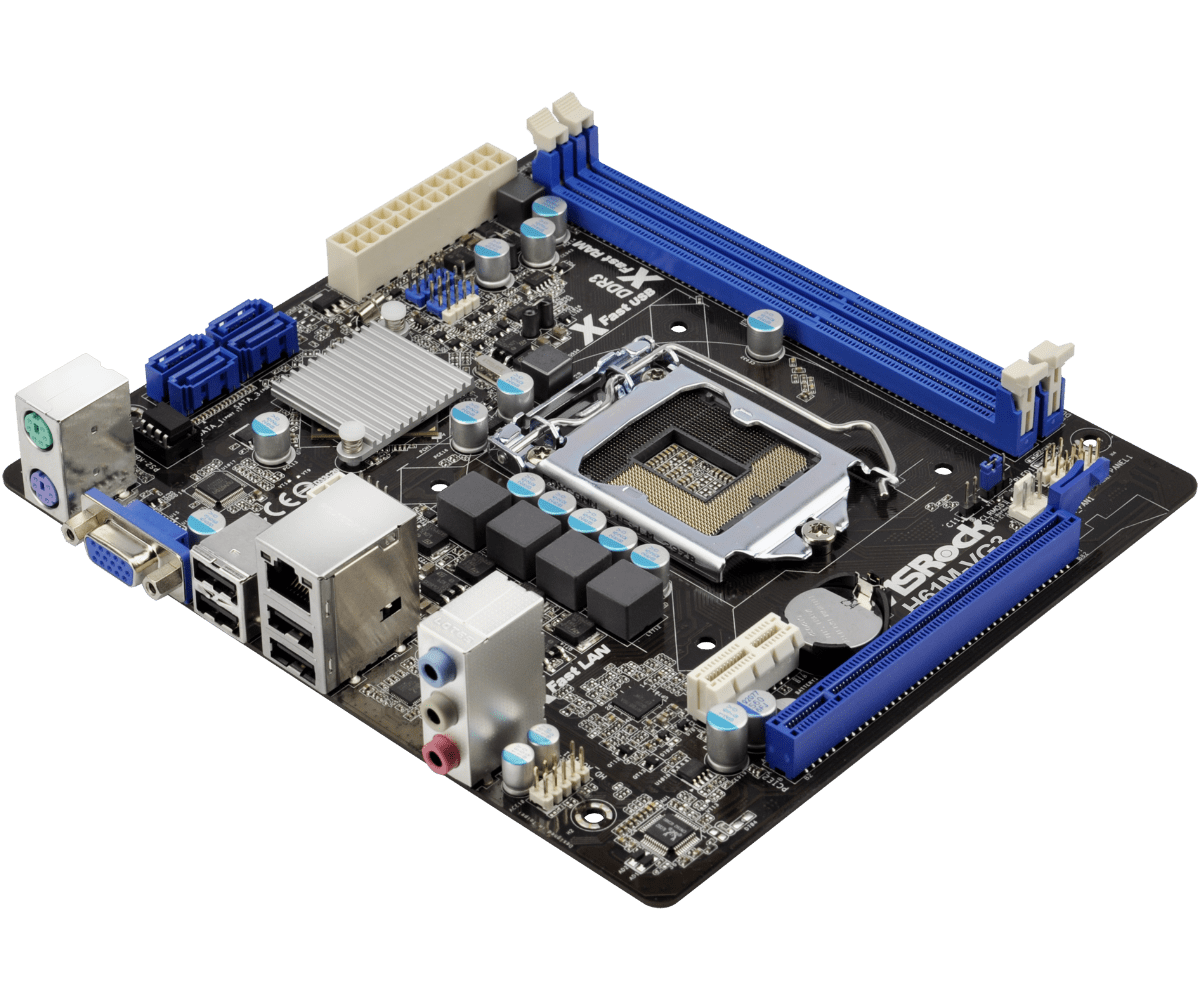

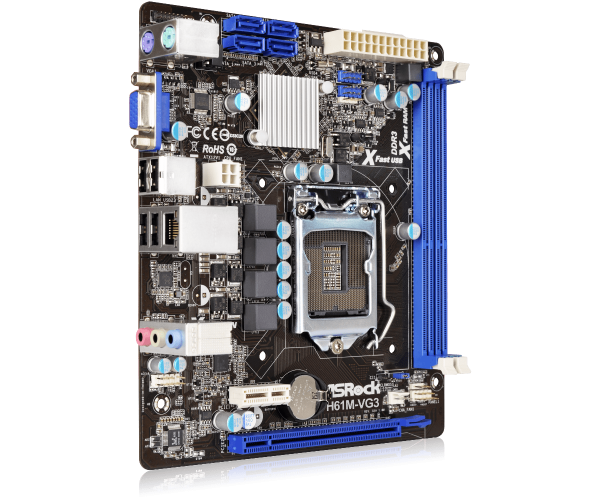

مادربرد ازراک مدل H61M-VG3

– Supports 3^rd and 2^nd Generation Intel^® Core™ i7 / i5 / i3 / Xeon^® / Pentium^® / Celeron^® in LGA1155 Package
– Supports Intel^® Turbo Boost 2.0 Technology
– Supports Hyper-Threading Technology

– Intel^® H61
– Supports Intel^® Rapid Start Technology and Smart Connect Technology

– Dual Channel DDR3 memory technology
– 2 x DDR3 DIMM slots
– Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
– Supports Intel^® Extreme Memory Profile (XMP) 1.3 / 1.2 with Intel^® Ivy Bridge CPU

– 32Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumperfree
– SMBIOS 2.3.1 Support

– Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video 2.0, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® HD Graphics 2500/4000 with Intel^® Ivy Bridge CPU
– Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® HD Graphics 2000/3000, Intel^® Advanced Vector Extensions (AVX) with Intel^® Sandy Bridge CPU
– Pixel Shader 5.0, DirectX 11 with Intel^® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel^® Sandy Bridge CPU.
– Max. shared memory 1760MB with Intel^® Ivy Bridge CPU. Max. shared memory 1759MB with Intel^® Sandy Bridge CPU.
– Supports D-Sub with max. resolution up to 2048×1536 @ 75Hz

– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

– 1 x PCI Express 3.0 x16 slot (blue @ x16 mode)
– 1 x PCI Express 2.0 x1 slot

– 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
– 1 x Power LED header
– 1 x Chassis Intrusion header
– 1 x LPC header
– 1 x CPU Fan connectors (4-pin)
– 1 x Chassis Fan connector (3-pin)
– 24 pin ATX power connector
– 4 pin 12V power connector
– Front panel audio connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)

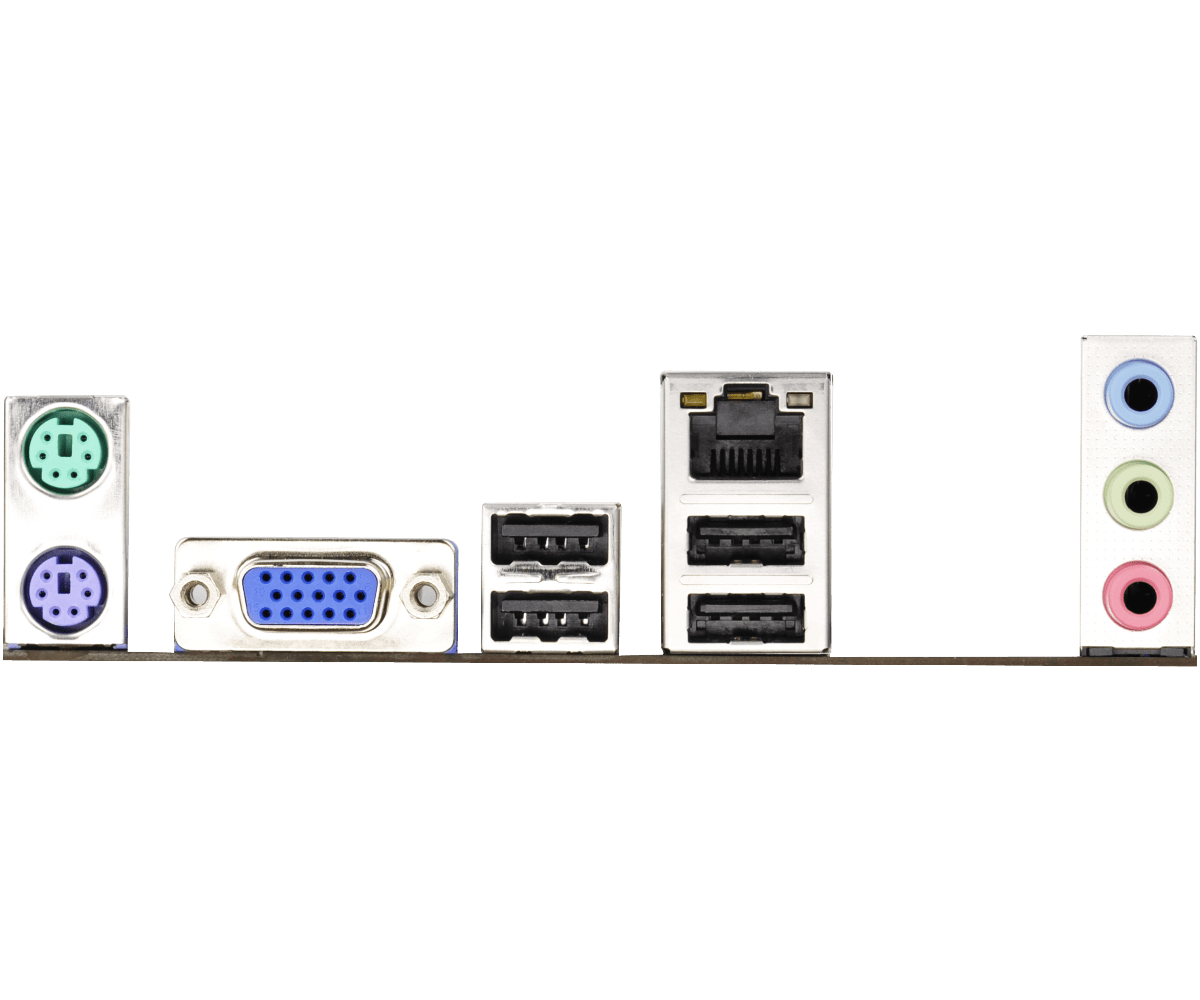

I/O Panel
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 4 x Ready-to-Use USB 2.0 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Line in / Front Speaker / Microphone
